Workflow delete data - best practices

A typical workflow setup for deleting data.

Workflow setup

The workflow setup should be:

  • Accept Input: Yes
    • Required Input: Yes
  • Hide Step Pane: Yes
    • Window Size: Small

image-20231124145435441

The activities should be configured as shown below:

image-20231124142127892

Scripted: Validate data

The workflow must validate whether the data is deletable. Many systems have constraints for deleting data, such as it must not be possible to delete a setting that is currently in use or an active user.

The activity should record validation errors in a workflow variable. In many cases, the error should be represented by a text resource key so that it can be displayed on the UI.

// Example: the data must be deactivated before deleting
if (ctx.Input.Get<bool>("IsActive"))
{
    // Set the error message to a workflow variable "Error"
    ctx.Set("Error", "cwdm_cannot_delete_active_job");
}

Form: Show error

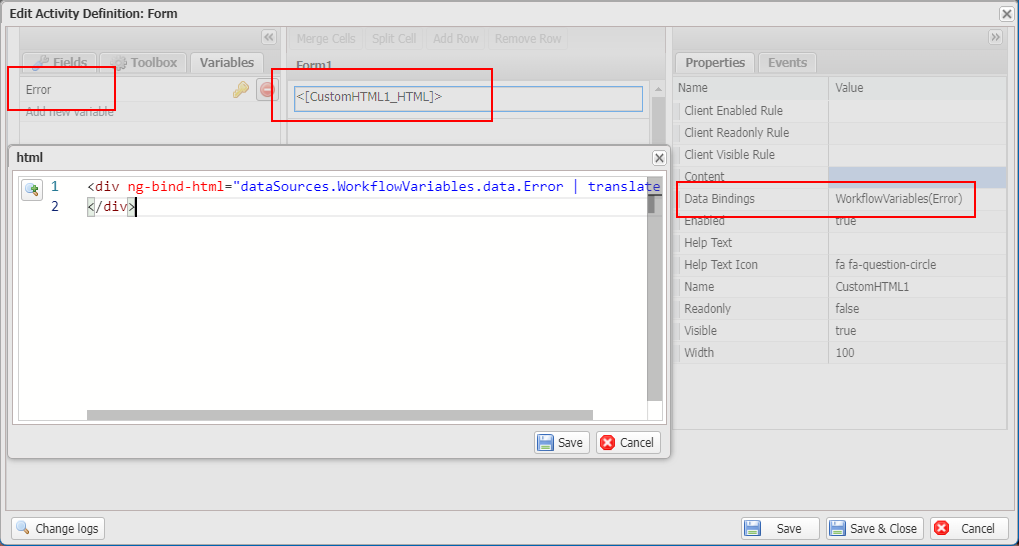

Declare the variable to be used in the form, and then bind it to a CustomHTML component. Make sure you remember to apply the translate filter.

image-20231124144048564

<div ng-bind-html="dataSources.WorkflowVariables.data.Error | translate"></div>

You must configure the Inclusion Logic so that the activity only executes when there is any error.

image-20231124144219670

Stop: Stop if error

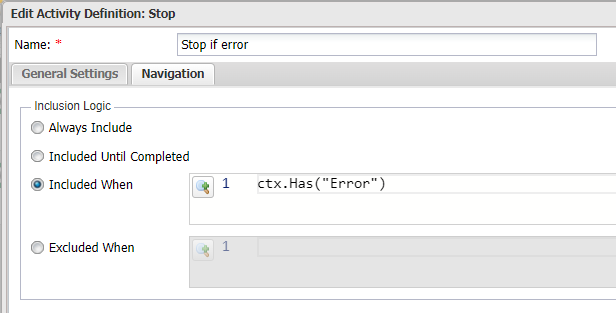

Use the Stop activity to stop the workflow. You must configure the Inclusion Logic so that the activity only executes when there is any error.

image-20231124144419026

Form: Confirm

A form for confirming user decision. This is recommended for critical actions like deleting data.

image-20231124144652158

Remember to apply translation for the message:

<div ng-bind-html="'cwdm_common_delete_confirm' | translate:{Name: dataSources.CwDmJob.data.Name}" />

Scripted: Delete

var dataApi = ctx.Use<IDataApi>();
dataApi.Delete(ctx.Input.Id);
