Data source management

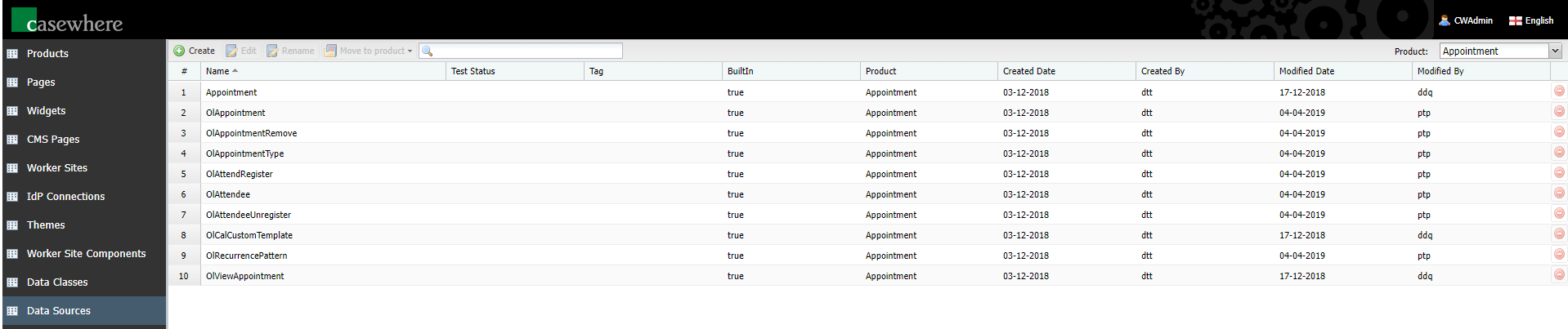

In Casewhere Admin, navigate to Data Sources to create, edit and manage data sources like any product resource.

image-20211229124110147

Data source editor

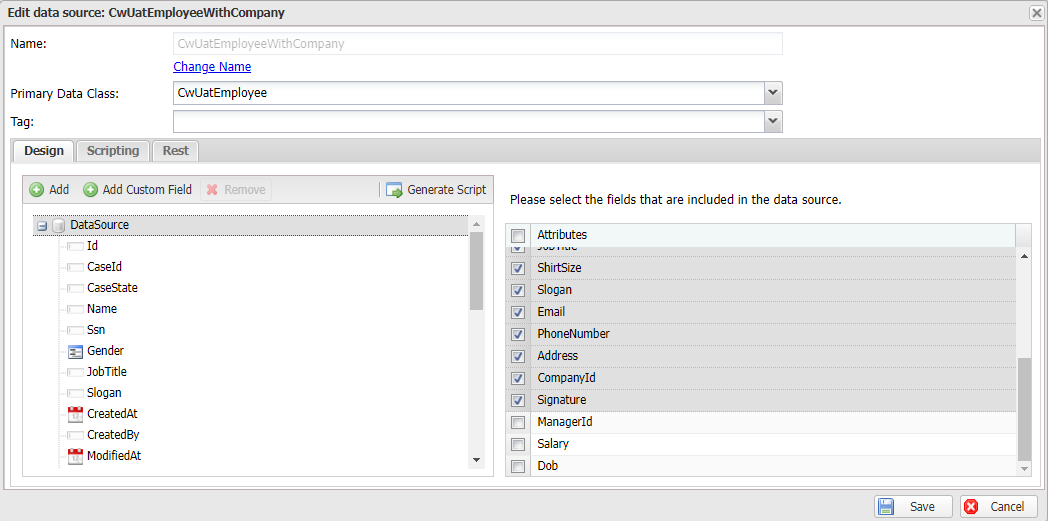

Casewhere provides an editor to design and configure data sources.

image-20220114183426651

General information

Name: Data source name must be unique

Primary Data Class: You must select a primary data class for the data source. From here, you can link to different related data classes to build a rich data source

Tag: Tags are used to facilitate searching, resource management

Design data source

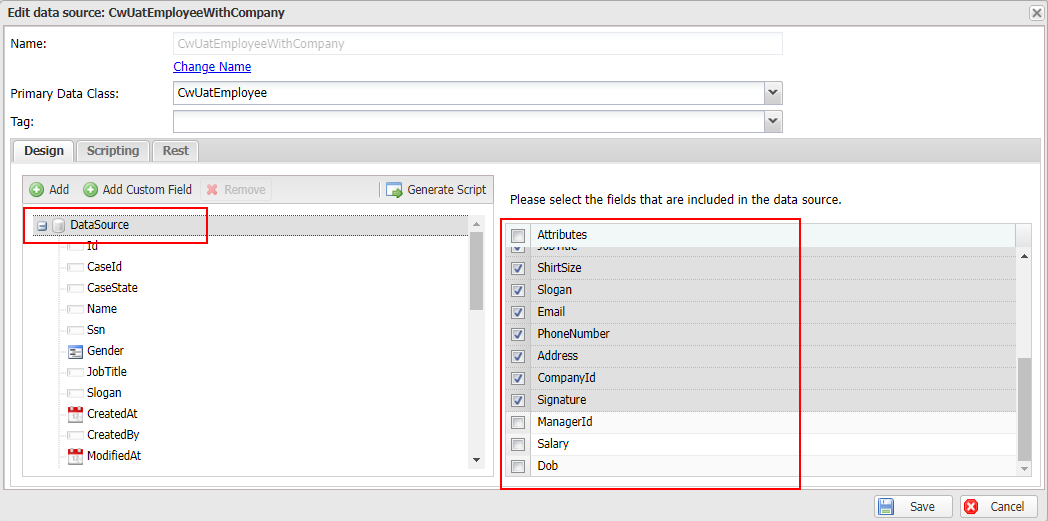

Click on the data node image-20220114184211088 to select what to include in the data source output. Note that a data source can have multiple data nodes; each represents a data class. The root node represents the primary data class.

image-20220114183600395

Click on the field node to edit. You can easily see that the field icon reflects the field data type.

  • FieldName: The name of the data class attribute. You can only edit the field name for custom fields
  • Title: The title of the field shown on UI. Casewhere accepts a text resource key here
  • Data Type: The data attribute type. You can only edit for custom fields
  • Is Filterable: Determine if the data consumers can filter by this field

image-20220114190547771

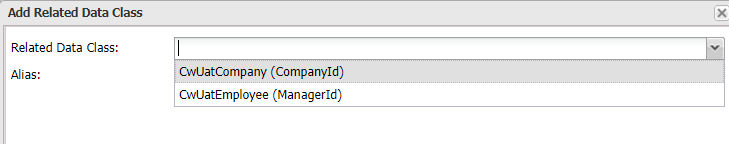

You can enrich the data source by joining a data class related to the primary. To do that, click the Add button.

  • Related Data Class: Select the data class to join. As you can easily see, the relationships are deternmined by foreign keys.
  • Alias: Name of the field holding the information of the joined data class. The default name is the data class name.

image-20220114183832695

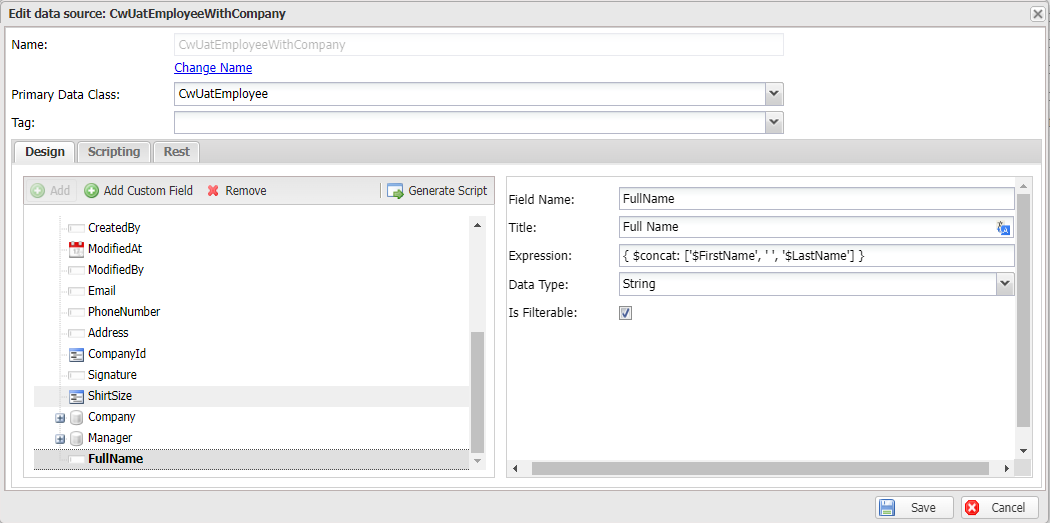

You can add a custom field by clicking on Add Custom Field button, and define the field logic by providing a MongoDB expression. The below example shows how to add a custom field for FullName computed from the two base fields FirstName and LastName.

image-20220114185504369

Advanced settings

Scripting

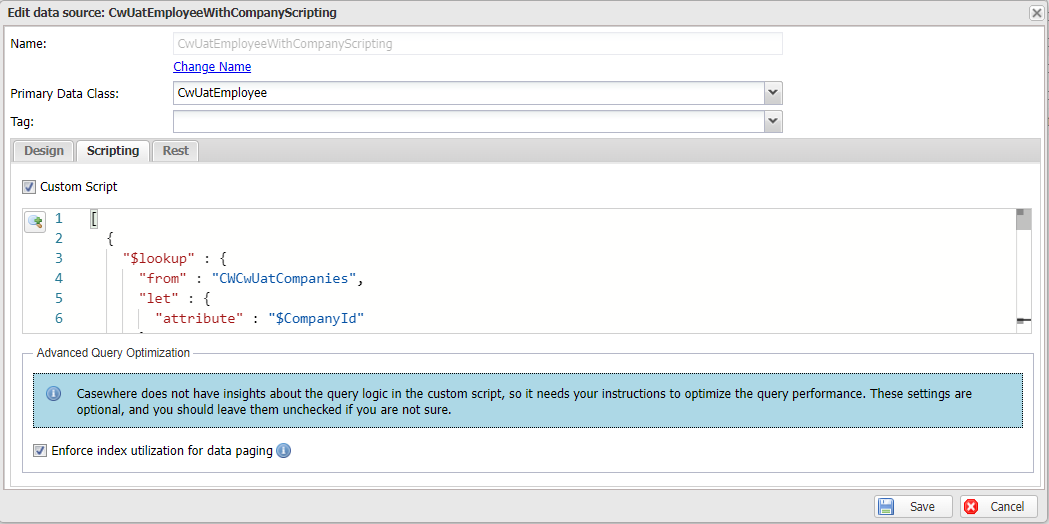

Scripting is useful when you need to calculate aggregate values for the data in a collection, e.g., monthly income, sales per employee, etc. To start building a data source using scripting, navigate to the Scripting tab, enable Custom scripting. After that, define the aggregation pipeline using MongoDB Aggregation Framework. Click here to learn more about scripting data source.

image-20220114205025601

REST

It's possible for the frontend components in worker sites to query the data source directly. For that, navigate to the Rest tab and enable Access From Worker Site. You can protect the data source by specifying the access rules. Click here to learn how to use restful data sources in Casewhere.

image-20220114205822012
