Data class management

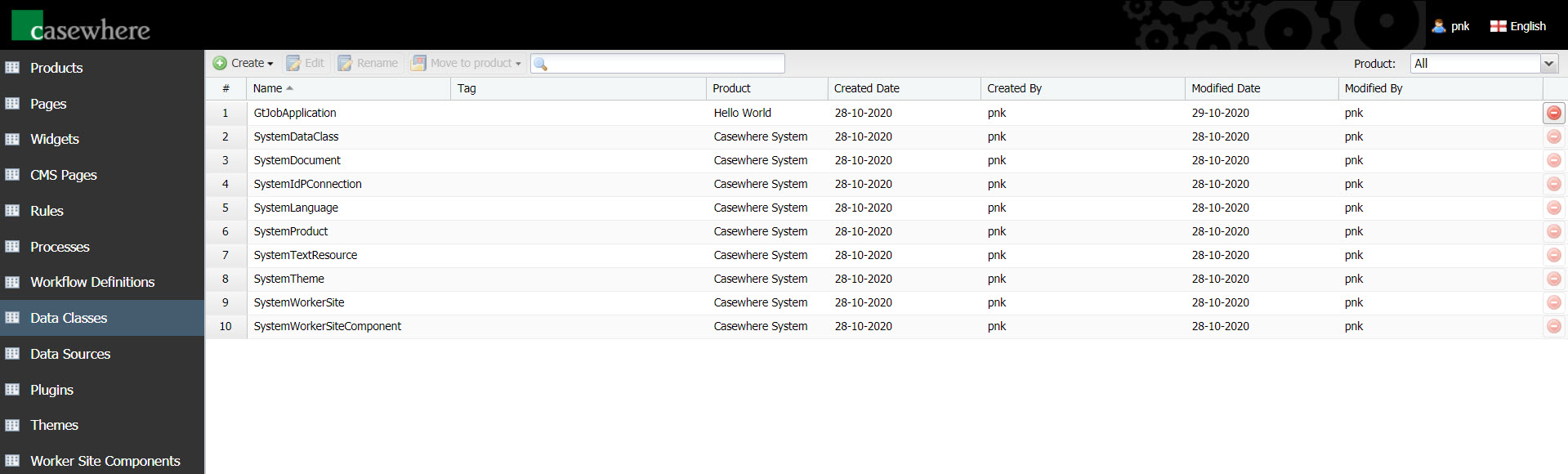

In Casewhere Admin, navigate to Data Classes to design the data model for your solution. From here, you can create, edit, and manage data classes like any product resource.

The data class editor is where you define the attributes for your data class and configure advanced settings such as optimizing data queries using indexes, configuring audit logging, enabling free-text search, and more.

Data attributes

Casewhere supports the following attribute types:

Name	Description
Boolean	Represents a Boolean value, which can be either true or false.
String	Represents a sequence of zero or more Unicode characters.
Guid	Represents a globally unique identifier (Guid).
Integer	Represents 4-byte integer numbers from -2,147,483,648 to 2,147,483,647.
Long	Represents 8-byte integer numbers from -9,223,372,036,854,775,808 to 9,223,372,036,854,775,807.
Double	Represents 8-byte floating-point numbers from ±5.0 × 10⁻³²⁴ to ±1.7 × 10³⁰⁸.
Decimal	Represents a 128-bit high-precision decimal number. Suitable for financial and monetary calculations where rounding errors from Double are unacceptable. Stored as MongoDB Decimal128.
DateTime	Represents a value of time, typically expressed as a date and time of day.
Enum	Represents a combination of choices. You will need to define the options as part of the configuration.
Document	Represents a binary file.
Object	Represents a dynamic object.
Foreign Key	Represents a reference to another data class.
Array	Represents an array of elements. Element type can be any singular data type supported by Casewhere. An array of arrays is not supported.

Working with data classes

There are two main places where data classes are added: processes and workflow definitions. When data classes are added to a process, it specifies the type of data that can be managed in all cases of that process.

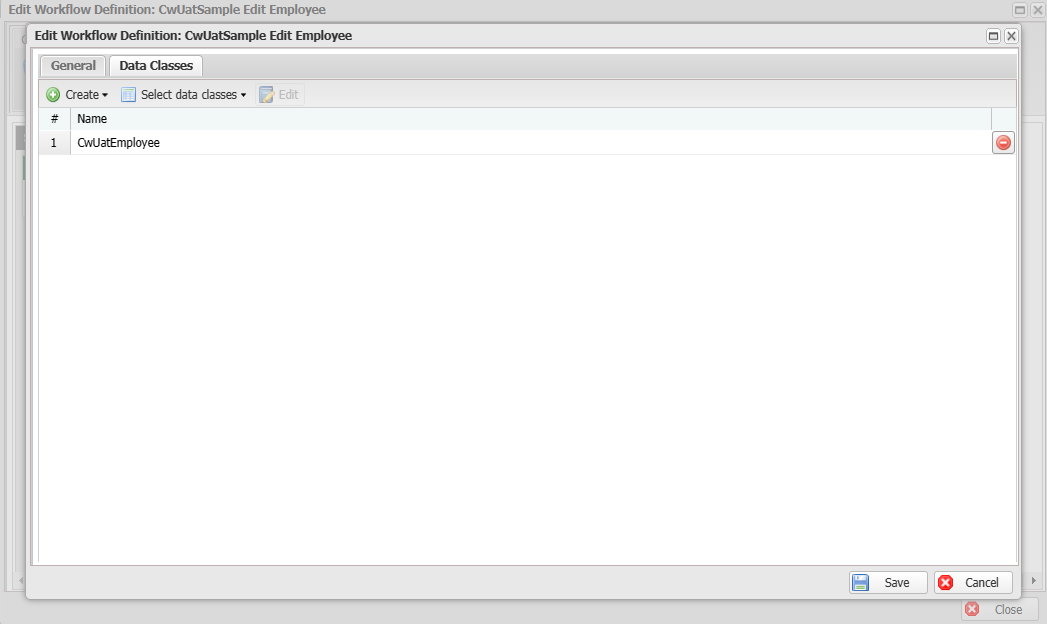

Workflows are responsible for administering case data. By adding data classes to a workflow definition, you specify which workflow definitions can be used for which processes.
