Data objects

Data storage

Casewhere stores information in data objects, each constructed by a set of data attributes that follow the definition in the corresponding data class.

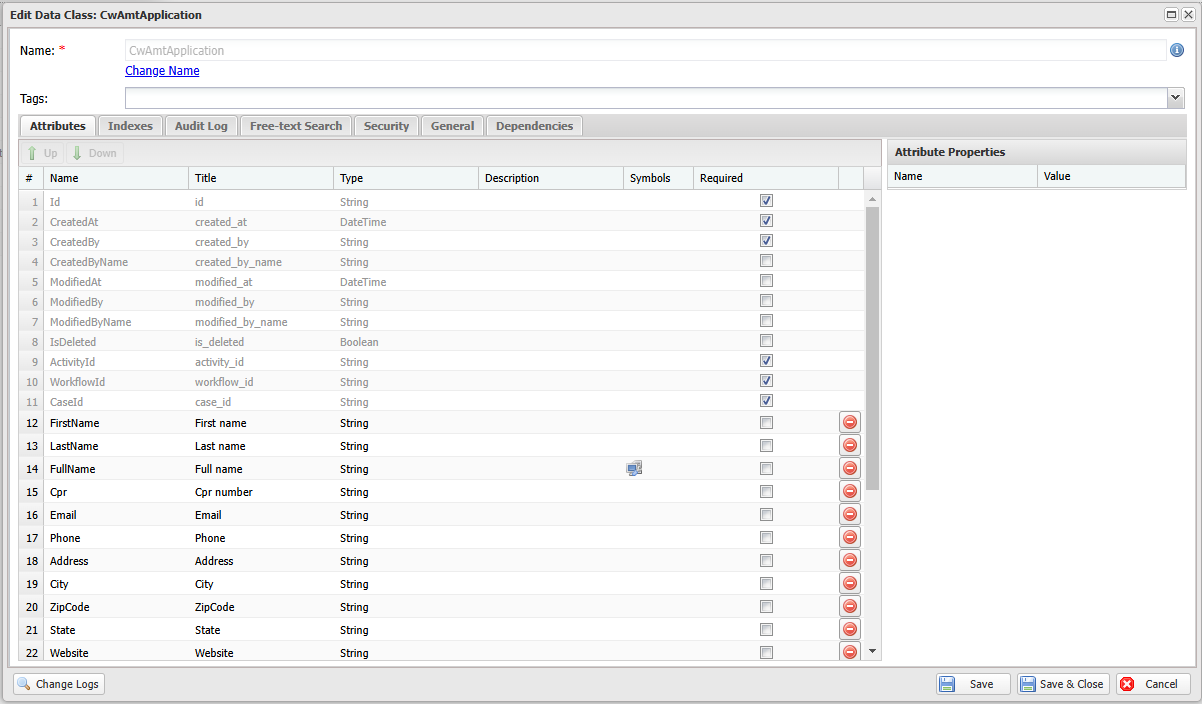

The screenshot below illustrates how a data class is configured in Casewhere:

image-20241216165508575

Each data object is represented by a MongoDB document:

{
    "_id" : "CwAmtApplication/eebf8351-adc8-4b33-be3f-b1f6009dff03",
    "IsDeleted" : false,
    "CreatedAt" : ISODate("2024-09-25T09:35:14.779+0000"),
    "CreatedBy" : "CWRuntime",
    "CreatedByName" : "CWRuntime",
    "Version" : NumberInt(1),
    "ModifiedAt" : ISODate("2024-09-25T09:35:15.741+0000"),
    "ModifiedBy" : "CWRuntime",
    "ModifiedByName" : "CWRuntime",
    "ActivityId" : CSUUID("257A1B62-62A8-47FE-AE69-B1F6009DFED2"),
    "WorkflowId" : CSUUID("A39DAA11-7FAC-429A-A6D3-B1F6009DFED1"),
    "CaseId" : CSUUID("BC4271BE-9199-4BAD-AB14-B1F6009DFED1"),
    "FirstName" : "Amber",
    "LastName" : "Steuber",
    "FullName" : "Amber Steuber",
    "Email" : "Amber.Steuber@hotmail.com",
    "ApplicationAmount" : 2248.98,
    "Status" : "Approved",
    "SubmittedDate" : ISODate("2021-06-16T13:03:44.764+0000"),
    "ApplicationID" : "0000251",
    "CaseState" : "Created"
}

Data attributes

There are two main types of data attributes:

  • System-managed attributes — automatically set by Casewhere:

    Attribute Description
    Id Unique string in the format {DataClass}/{Guid}, e.g. Application/ff87b1a8-fa67-4fbf-a0b7-8b7f07d63670
    CreatedAt UTC timestamp when the data object was created
    CreatedBy Identifier of the user who created the data object (determined by IdP Connection claim mapping)
    CreatedByName Display name of the user who created the data object
    ModifiedAt UTC timestamp of the last update
    ModifiedBy Identifier of the last user who updated the data object
    ModifiedByName Display name of the last user who updated the data object
    IsDeleted Whether the data object has been soft-deleted
    ActivityId ID of the workflow activity that created the data object
    WorkflowId ID of the workflow that created the data object
    CaseId ID of the case to which the data object belongs
    Version Integer that increments on each update to the data object
    CaseState State of the case to which the data object belongs (e.g. Draft, Created)

  • Custom attributes — defined by your solution. See the complete list of attribute types.

Create and update data objects

All data objects in Casewhere must be created through a workflow, either via a form activity or a scripted activity.

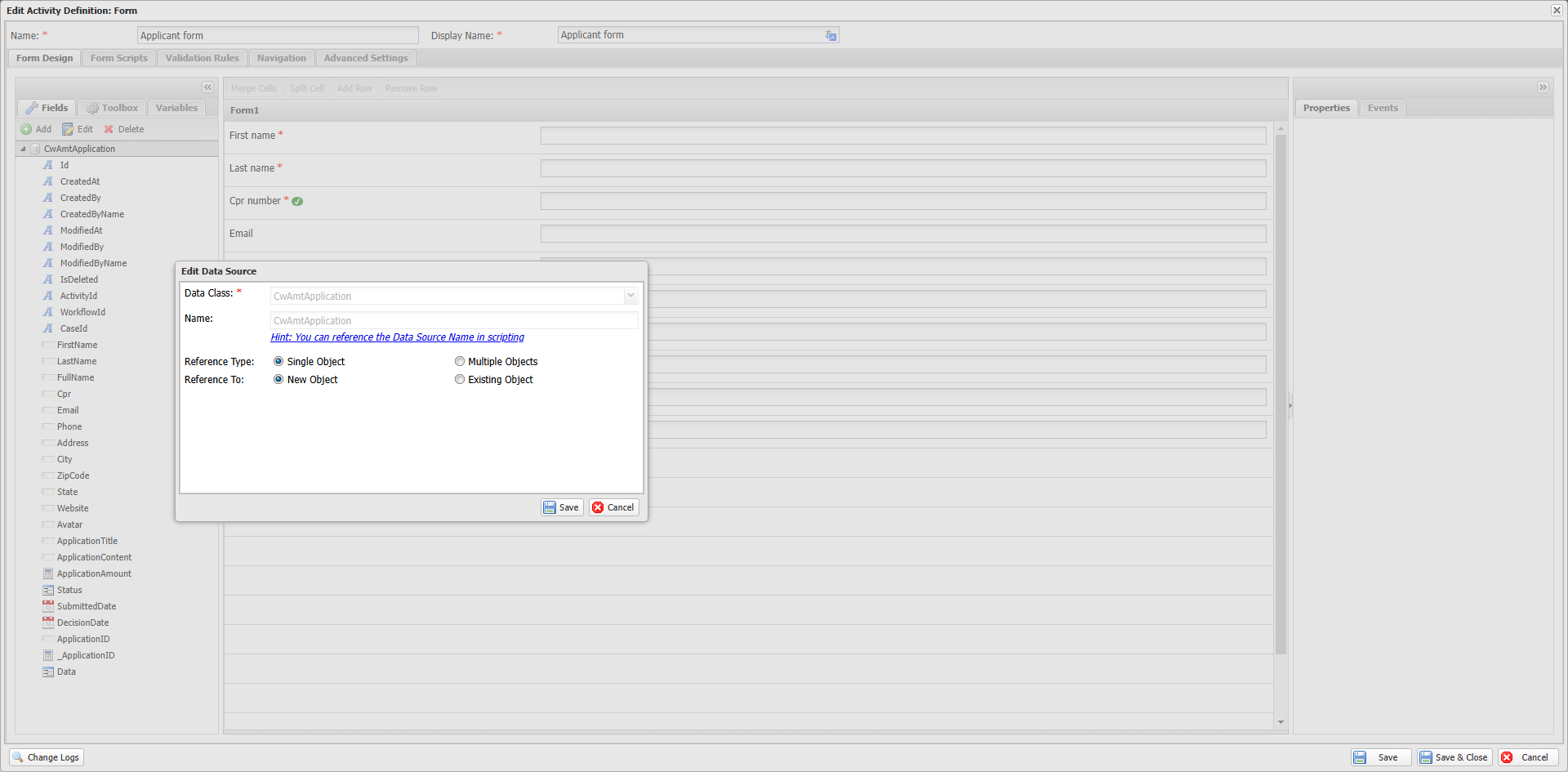

Form Activity: When end-users submit data through a form, Casewhere creates or updates data objects for the associated data class configured in the form's data source, provided that all data validations pass. Learn more about form activity.

image-20241218133014746

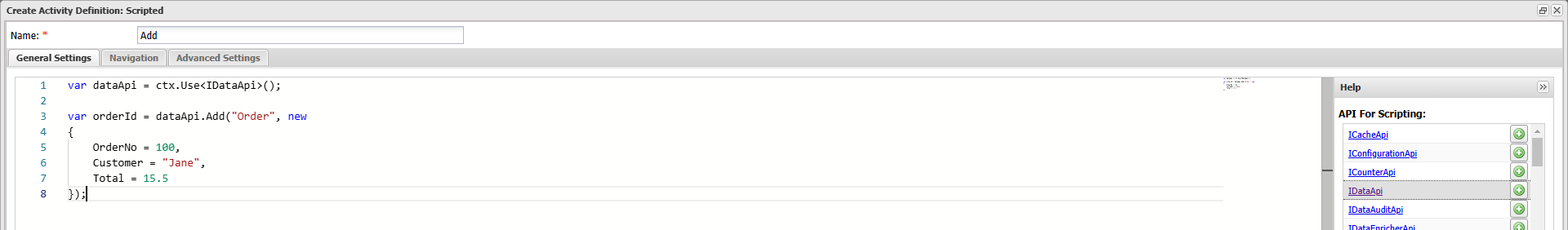

Scripted Activity: Create and update data objects by executing C# scripts using the IDataApi. Learn more about scripted activity.

image-20241218134128277

Add a data object

var dataApi = ctx.Use<IDataApi>();
var orderId = dataApi.Add("Order", new
{
    OrderNo = 100,
    Customer = "Jane",
    Total = 15.5
});

You can optionally specify a target case (the caseId parameter is of type Guid?):

var orderId = dataApi.Add("Order", new { OrderNo = 100 }, caseId: targetCaseId);

Note: Most mutation methods (Add, Update, Delete, Clone, Copy, etc.) accept an optional bool notifyChange = true parameter. Set it to false to suppress data-change notifications when needed.

Update a data object

var dataApi = ctx.Use<IDataApi>();
dataApi.Update(orderId, new
{
    Total = 20,
    BillingAddress = "123 Sunset Blvd"
});

Update many data objects

Update multiple data objects at once by IDs, by query, or by enumeration:

var dataApi = ctx.Use<IDataApi>();

// By IDs
dataApi.UpdateMany(new string[] { "doId1", "doId2" }, new { Status = "Closed" });

// By query
var filter = FilterBuilder.Create().Eq("DepartmentId", ctx.Input.Id).Eq("Active", true).Build();
var query = DataObjectApiQuery.For("Employee").FilterBy(filter);
dataApi.UpdateMany(query, new { Active = false });

// By enumeration (for large collections)
var enumQuery = DataEnumerationQuery.For("Employee").FilterBy(filter);
dataApi.UpdateMany(enumQuery, new { Active = false });

Clone a data object

Create a copy of an existing data object. Optionally ignore specific properties and specify a target case:

var dataApi = ctx.Use<IDataApi>();
var clonedId = dataApi.Clone(id, ignoreProperties: new[] { "Status", "CreatedDate" });

// Clone into a different case
var clonedId2 = dataApi.Clone(id, caseId: targetCaseId, ignoreProperties: new[] { "Status" });

Copy data between data objects

Copy data from one data object to another. Only attributes that exist in both data classes are copied:

var dataApi = ctx.Use<IDataApi>();
dataApi.Copy(srcId, destId, ignoreProperties: new[] { "Status" });

Increment a numeric attribute

Atomically increment a numeric attribute value. The value parameter accepts any numeric type (int, long, double, decimal). This is thread-safe:

var dataApi = ctx.Use<IDataApi>();
dataApi.Inc(customerId, "AvailableBalance", 10000);

Manipulate array attributes

Push and pull items from array attributes. These operations are thread-safe:

var dataApi = ctx.Use<IDataApi>();

// Push items to an array
dataApi.Push(id, "Categories", "item1", "item2");

// Pull items from an array
dataApi.Pull(id, "Categories", "item1");

Move a data object to another case

The caseId parameter is of type Guid:

var dataApi = ctx.Use<IDataApi>();
dataApi.MoveToCase(dataObjectId, targetCaseId);

Change the creator of a data object

var dataApi = ctx.Use<IDataApi>();
dataApi.ChangeCreator(dataObjectId, "newUserName");

Delete data objects

Casewhere supports soft deletion and hard deletion.

Soft deletion

The data object is marked as deleted but remains in the database. This is the default method:

var dataApi = ctx.Use<IDataApi>();
dataApi.Delete(ctx.Input.Id);

Delete many data objects

Delete multiple data objects at once by IDs, by query, or by enumeration:

var dataApi = ctx.Use<IDataApi>();

// By IDs
dataApi.DeleteMany(new string[] { "doId1", "doId2" });

// By query
var filter = FilterBuilder.Create().Eq("Status", "Expired").Build();
var query = DataObjectApiQuery.For("Contract").FilterBy(filter);
dataApi.DeleteMany(query);

// By enumeration (for large collections)
var enumQuery = DataEnumerationQuery.For("Contract").FilterBy(filter);
dataApi.DeleteMany(enumQuery);

Hard deletion

Permanently removes data objects and their associated events from the database:

var dataApi = ctx.Use<IDataApi>();
dataApi.HardDelete(customerId1, customerId2);

Note: Hard deletion must be enabled in the Worker API configuration: <add key="db:EnableHardDelete" value="true" />

Load and search data objects

When loading data through widgets or form activities, Casewhere automatically retrieves data based on your data source configuration. Below are the scripting APIs for manual data access.

Load a single data object

var dataApi = ctx.Use<IDataApi>();

// Load by ID
var application = dataApi.Load(applicationId);

// Force reload from database (bypass cache)
var freshData = dataApi.Load(applicationId, forceReload: true);

// Load from a data source (useful for queries that include related data)
var employee = dataApi.Load("EmployeesWithDepartments", employeeId);
Log.Info("Department: {Dept}", employee["Department"]["Name"]);

Search data objects

var dataApi = ctx.Use<IDataApi>();
var filter = FilterBuilder.Create()
    .Eq("CompanyId", ctx.Input.Id)
    .Eq("Active", true)
    .Build();

var result = dataApi.Search(DataObjectApiQuery
    .For("Employee")
    .FilterBy(filter));

Log.Info("Total: {TotalItems}", result.TotalItems);
foreach (var emp in result.Data)
{
    Log.Info("Employee {Name}", emp.Get<string>("Name"));
}

Search from a data source

var dataApi = ctx.Use<IDataApi>();
var filter = FilterBuilder.Create().Eq("Active", true).Build();
var result = dataApi.Search(DataSourceApiQuery
    .For("EmployeesWithDepartments")
    .FilterBy(filter));

foreach (var emp in result.Data)
    Log.Info("{Name} - {Dept}", emp["Name"], emp["Department"]["Name"]);

Check existence and count

var dataApi = ctx.Use<IDataApi>();
var filter = FilterBuilder.Create().Eq("DepartmentId", deptId).Build();

// Check if any matching data object exists
bool hasEmployees = dataApi.Any("Employee", filter);

// Count matching data objects
long count = dataApi.Count("Employee", filter);

Enumerate large collections

Use Enumerate for iterating through large data sets without loading everything into memory:

var dataApi = ctx.Use<IDataApi>();
var filter = FilterBuilder.Create().Eq("Active", true).Build();
var query = DataEnumerationQuery.For("Employee").FilterBy(filter);

var counter = 0;
foreach (var employee in dataApi.Enumerate(query))
{
    var fullName = employee["FirstName"] + " " + employee["LastName"];
    dataApi.Update(employee["Id"], new { FullName = fullName });

    counter++;
    if (counter % 100 == 0)
        ctx.CommitChanges();
}

You can also enumerate from a data source:

var query = DataSourceEnumerationQuery.For("EmployeeWithCompany")
    .FilterBy(filter);

foreach (var employee in dataApi.Enumerate(query))
{
    Log.Info("Employee: {Name}, Company: {Company}",
        employee["Name"], employee["Company"]["Name"]);
}

Export data to CSV

Stream a data source result set to a CSV file:

var dataApi = ctx.Use<IDataApi>();
var filter = FilterBuilder.Create().Eq("Active", true).Build();
var query = DataSourceEnumerationQuery.For("EmployeeWithCompany")
    .FilterBy(filter)
    .ProjectOn("Name", "Company");

var csvPath = dataApi.DumpToCsv(query);
Log.Info("CSV exported to {path}", csvPath);

Advanced query options

DataObjectApiQuery and DataEnumerationQuery support additional options for performance tuning:

var query = DataObjectApiQuery.For("Application")
    .FilterBy(filter)
    .OrderBy("SubmittedDate", true)
    .Paging(skip: 0, take: 50)
    .IncludeTotalItems(true)                        // Include total count in results
    .LimitSearch(1000)                              // Limit the search window
    .WithCustomCollation("da", 2)                   // Custom collation (locale, strength)
    .SetHintIndex("general_Status_SubmittedDate")   // Hint a specific index
    .SetHintIndexForCount("general_Status")         // Hint index for count query
    .SetMaxQueryTimeout(30000);                     // Max query timeout in ms

Data migration

Import data with a specific ID (useful for data migration scenarios):

var dataApi = ctx.Use<IDataApi>();

// Basic migration
dataApi.Migrate("Employee/custom-id-123", new { Name = "Jane" },
    new DslMigrationOption(canUpdateIfExist: true, ignoreEnforceConstraints: true));

Read data objects

The IDataApi returns data objects of type DynamicDataObject, which provides convenient methods for reading data:

Read attributes

var name = dataObject.Get<string>("Name");
var amount = dataObject.Get<double>("Amount");
var isActive = dataObject.Get<bool>("IsActive");

Read array attributes

var skills = dataObject.GetList<string>("Skills");
var ratings = dataObject.GetList<double>("Ratings");

Check attribute existence

// Returns true if the attribute value is neither null nor empty
var hasSkillSet = dataObject.Has("Skills");

// Returns true if the attribute is present, regardless of its value
var exists = dataObject.HasKey("Skills");

Utility methods

Get data class metadata

var dataApi = ctx.Use<IDataApi>();
var dataClass = dataApi.GetDataClass("Employee");

Get data source schema

var dataApi = ctx.Use<IDataApi>();
var schema = dataApi.GetSchema("EmployeeDataSource");

FilterBuilder reference

The FilterBuilder provides a fluent API for constructing MongoDB query filters:

Method Description
Eq(field, value) Equal to
Ne(field, value) Not equal to
Gt(field, value) Greater than
Gte(field, value) Greater than or equal to
Lt(field, value) Less than
Lte(field, value) Less than or equal to
In(field, values) Matches any value in the list
Nin(field, values) Does not match any value in the list
AnyEq(field, value) Any element in an array equals the value
AnyNe(field, value) Any element in an array does not equal the value
AnyGt(field, value) Any element in an array is greater than the value
AnyGte(field, value) Any element in an array is greater than or equal to the value
AnyLt(field, value) Any element in an array is less than the value
AnyLte(field, value) Any element in an array is less than or equal to the value
AnyIn(field, values) Any element in an array matches any value in the list
AnyNin(field, values) Any element in an array does not match any value in the list
And(filters) Logical AND of multiple filter conditions
Or(filters) Logical OR of multiple filter conditions
Text(search) Full-text search
Regex(field, pattern, options) Regular expression match
Exists(field, exists) Check if a field exists in the document
GeoWithin(field, coordinates) Geospatial: within a polygon
GeoWithinBox(field, lowerLeftX, lowerLeftY, upperRightX, upperRightY) Geospatial: within a bounding box
GeoWithinCenter(field, x, y, radius) Geospatial: within a circle
GeoWithinCenterSphere(field, x, y, radius) Geospatial: within a sphere
GeoWithinPolygon(field, points) Geospatial: within a polygon defined by points

Example: Combining filters with And/Or

var filter = FilterBuilder.Create()
    .And(
        FilterBuilder.Create().Eq("Status", "Active").Build(),
        FilterBuilder.Create().Or(
            FilterBuilder.Create().Eq("Department", "Sales").Build(),
            FilterBuilder.Create().Eq("Department", "Marketing").Build()
        ).Build()
    )
    .Build();
